Part Finder
Looking for a specific item in our catalog? Use the search bar below to quickly lookup products by identification markings, part number, drawing number, equipment type or keywords.
Image | Part # | Part Name | Description | Drawing # | Part Type |
---|---|---|---|---|---|

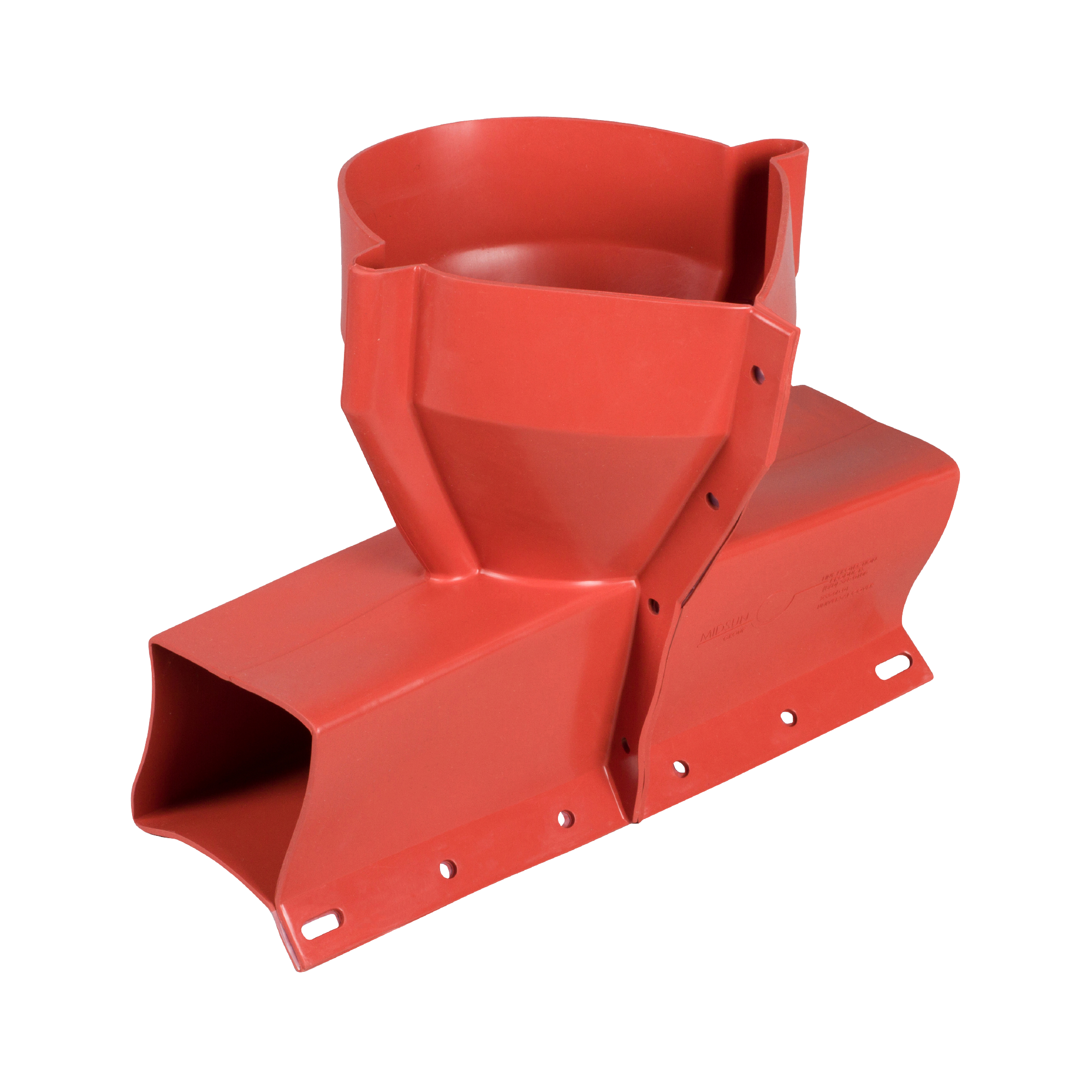

E/BSC-XXL | E/Bus Support XXL | Fits round, flat or angle bus ranging from 4.00in (10.16 cm) to 6.00in (15.24 cm). | 113-00-01 | Covers | |
E-INS-Glider-750 | E/Insulation Hand Glider Tool | Install E/Insulation on conductors, cables and jumpers with greater ease compared to applying by hand. Works on E/Insulation up to 0.75in. | Accessories, Insulation | ||
E/INS-EXT-450-G/5 | E/Insulation Round Bus Unreinforced 4.50in | Split line silicone hose for insulating bus against phase-to-ground or phase-to-phase wildlife contact. | 176-00-450-G | Insulation | |
E/INS-EXT-350-G/5 | E/Insulation Round Bus Unreinforced 3.50in | Split line silicone hose for insulating bus against phase-to-ground or phase-to-phase wildlife contact. | 176-00-350-G | Insulation | |
E/INS-EXT-250-G/5 | E/Insulation Round Bus Unreinforced 2.50in | Split line silicone hose for insulating bus against phase-to-ground or phase-to-phase wildlife contact. | 176-00-250-G | Insulation | |
E/DISCONNECT CVR-KIT | E/Disconnect Kit | Install on hat channel or U-channel ground with one or more insulators to prevent phase-to-ground wildlife contact with disconnect switches. | 116-00-00 | Covers | |

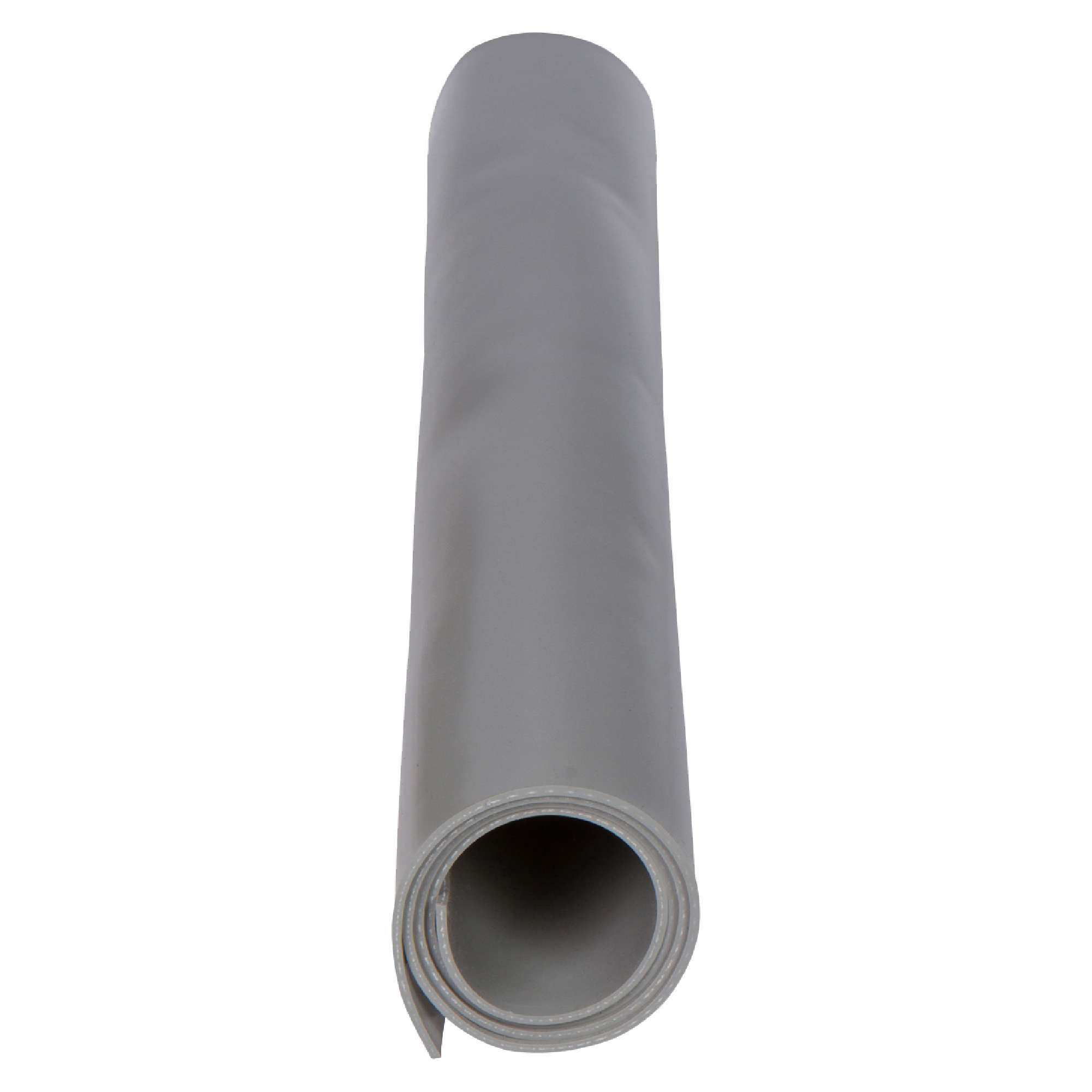

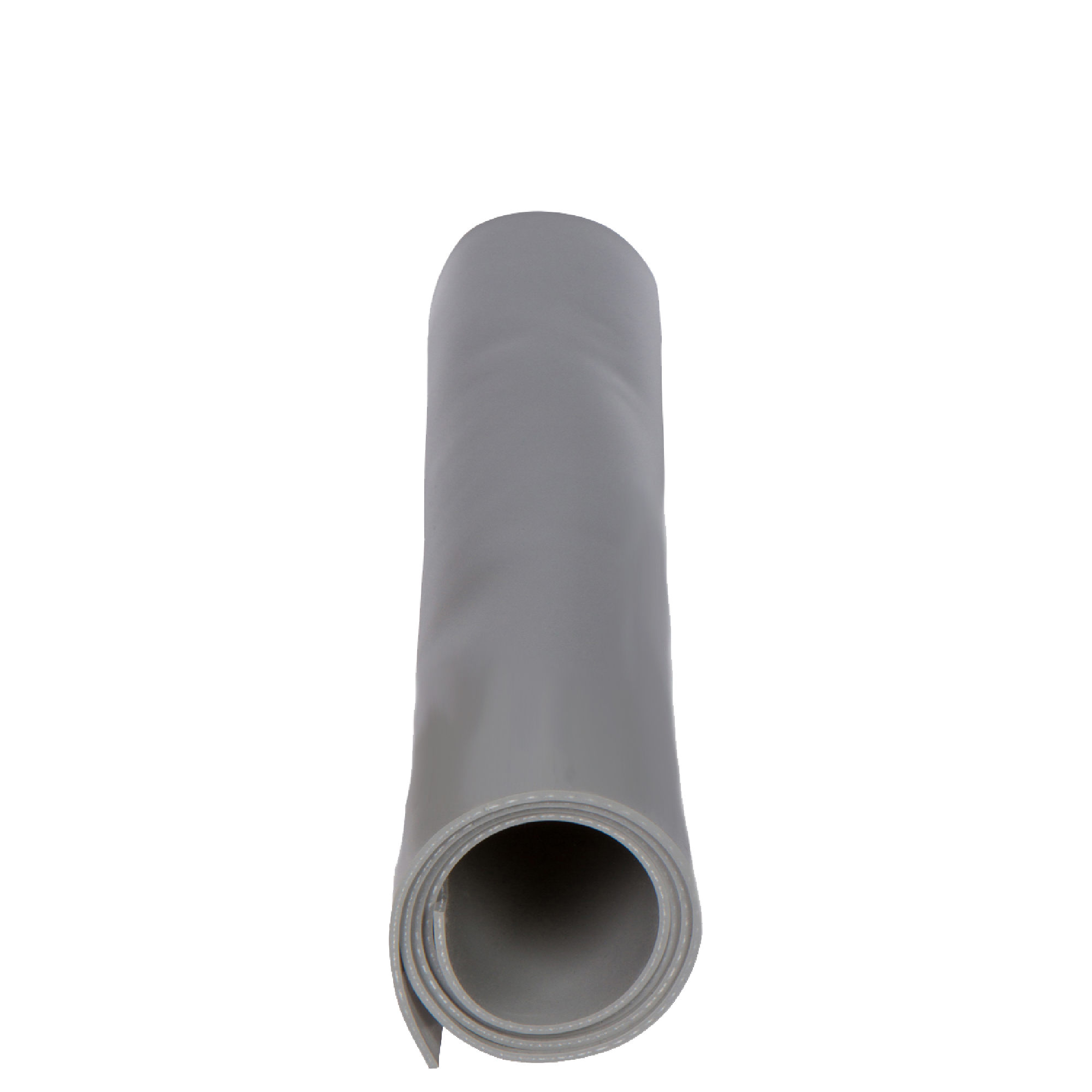

E/SS-30 | Silicone Sheet 30in x 10ft Roll | Rolls of silicone sheet material that can be cut to form around any complex objects to insulate against phase-to-phase and phase-to-ground wildlife contact. Use in conjunction with lineman scissors, E/Hole Punch and E/Push Pins to create a custom cover for any energized equipment. | 330-00-02 | Covers | |
E/SS-24 | Silicone Sheet 24in x 10ft Roll | Rolls of silicone sheet material that can be cut to form around any complex objects to insulate against phase-to-phase and phase-to-ground wildlife contact. Use in conjunction with lineman scissors, E/Hole Punch and E/Push Pins to create a custom cover for any energized equipment. | 330-00-01 | Covers | |
E/INS-FLAT400G-5 | E/Insulation Flat Bus 4.00in | Insulates flat bus up to 4in (101.6mm) width. Sold in 5ft (1.5m) pieces. | 256-00-400 | Insulation | |
E/INS-175-O | E/Insulation 1.75in Orange | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase wildlife contact. | 176-00-175-O | Insulation | |
E/INS-150-O | E/Insulation 1.50in Orange | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase wildlife contact. | 176-00-150-O | Insulation | |
E/INS-125-O | E/Insulation 1.25in Orange | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase wildlife contact. | 176-00-125-O | Insulation | |
E/INS-100-O | E/Insulation 1.00in Orange | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase wildlife contact. | 176-00-100-O | Insulation | |
E/INS-075-O | E/Insulation 0.75in Orange | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase wildlife contact. | 176-00-075-O | Insulation | |
E/INS-050-O | E/Insulation 0.50in Orange | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase wildlife contact. | 176-00-050-O | Insulation | |
E/INS-025-O | E/Insulation 0.25in Orange | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase wildlife contact. | 176-00-025-O | Insulation | |
E/SECTOS SWITCH COVER | E/ Sectos Switch Cover | Switch cover designed for Schneider or ABB switch assemblies on distribution circuits. | 354-00-01 | Covers | |
E/INS-THIN WALL-125-G | E/Insulation Thin Wall 1.25in | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase contact. Great for protection from brush contact. | 345-00-125 | Insulation | |
E/INS-THIN WALL-100-G | E/Insulation Thin Wall 1.00in | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase contact. Great for protection from brush contact. | 345-00-100 | Insulation | |
E/INS-THIN WALL-075-G | E/Insulation Thin Wall 0.75in | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase contact. Great for protection from brush contact. | 345-00-075 | Insulation | |
E/CAP CVR LGE | E/ Capacitor Cover Large | Fits both one and two bushing capacitors. | 211-00-00 | Covers | |
E/INS-THIN WALL-050-G | E/Insulation Thin Wall 0.50in | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase contact. Great for protection from brush contact. | 345-00-050 | Insulation | |

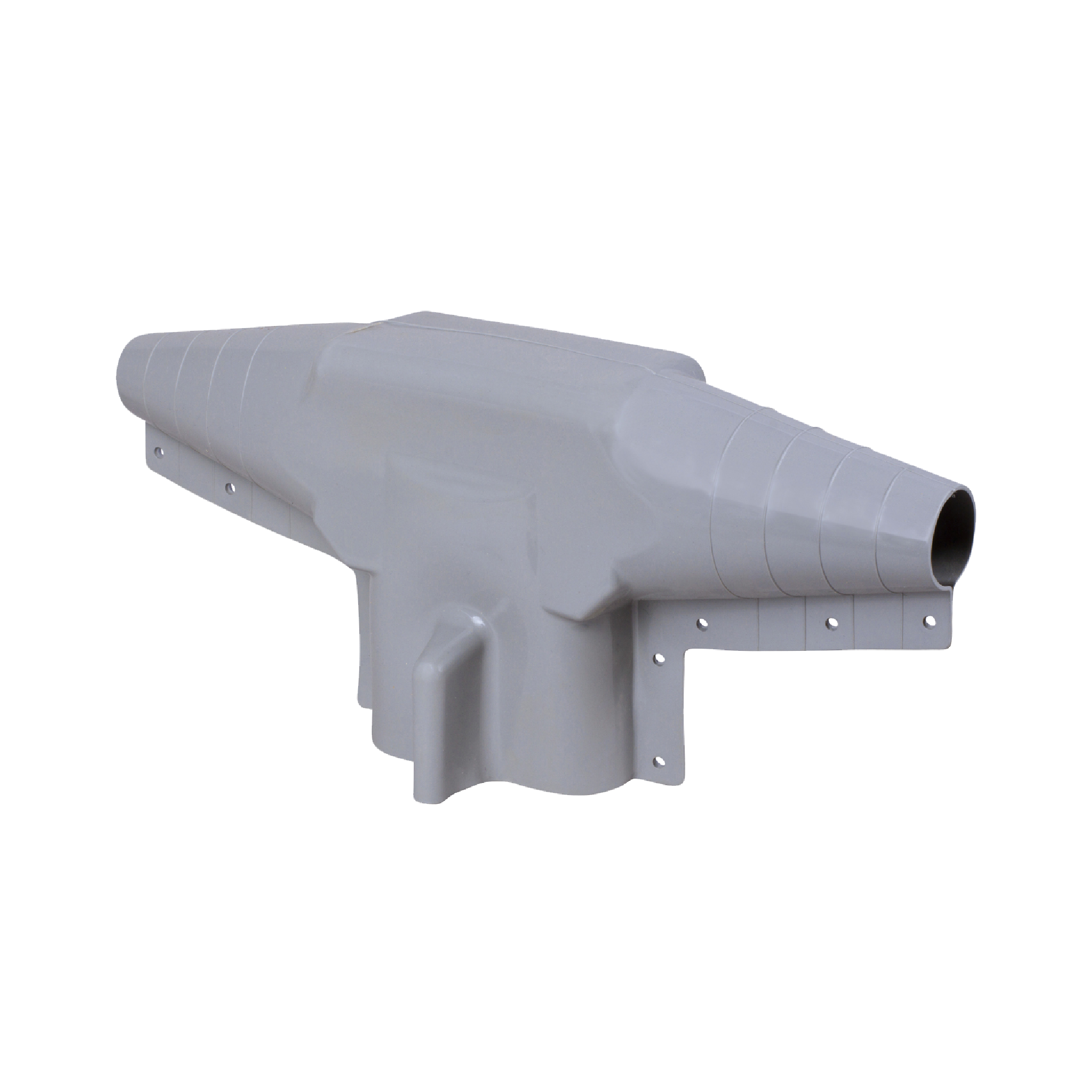

E/T-Bus Cover | E/Insulation T-Bus Universal | T-shaped silicone extrusion for insulating T-beam bus bar against phase-to-ground or phase-to-phase wildlife contact. | 196-30-01 | Insulation | |
E/INS-FLAT325G-5 | E/Insulation Flat Bus 3.25in | Insulates flat bus up to 3.25in (82.55mm) width. Sold in 5ft (1.5m) pieces. | 256-00-325 | Insulation | |
E/INS-ABC-325" TAIL-G-60 | E/Insulation Angle Bus 3.25in | Angled extruded silicone for insulating angle bus bar up to 3.25in against phase-to-ground or phase-to-phase wildlife contact. | 232-60-325 | Insulation | |
E/INS-ABC-400-TAIL-R-36 | E/Insulation Angle Bus 4.00in | Angled extruded silicone for insulating angle bus bar up to 4.00in against phase-to-ground or phase-to-phase wildlife contact. | 232-36-400 | Insulation | |
E/INS-650-G | E/Insulation Round Bus Reinforced 6.50in | Split line silicone hose for insulating bus against phase-to-ground or phase-to-phase wildlife contact. | 176-00-650-G | Insulation | |
E/INS-450-G | E/Insulation Round Bus Reinforced 4.50in | Split line silicone hose for insulating bus against phase-to-ground or phase-to-phase wildlife contact. | 176-00-450-G | Insulation | |
E/INS-350-G | E/Insulation Round Bus Reinforced 3.50in | Split line silicone hose for insulating bus against phase-to-ground or phase-to-phase wildlife contact. | 176-00-350-G | Insulation | |
E/INS-250-G | E/Insulation Round Bus Reinforced 2.50in | Split line silicone hose for insulating bus against phase-to-ground or phase-to-phase wildlife contact. | 176-00-250-G | Insulation | |
E/INS-200-G | E/Insulation 2.00in | Split line silicone hose for insulating bus against phase-to-ground or phase-to-phase wildlife contact. | 176-00-200-G | Insulation | |
E/INS-175-G | E/Insulation 1.75in | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase wildlife contact. | 176-00-175-G | Insulation | |
E/INS-150-G | E/Insulation 1.50in | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase wildlife contact. | 176-00-150-G | Insulation | |
E/INS-125-G | E/Insulation 1.25in | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase wildlife contact. | 176-00-125-G | Insulation | |
E/INS-100-G | E/Insulation 1.00in | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase wildlife contact. | 176-00-100-G | Insulation | |
E/INS-075-G | E/Insulation 0.75in | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase wildlife contact. | 176-00-075-G | Insulation | |
E/INS-050-G | E/Insulation 0.50in | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase wildlife contact. | 176-00-050-G | Insulation | |
E/INS-025-G | E/Insulation 0.25in Gray | Split line silicone hose for insulating conductor cables, leads and jumpers against phase-to-ground or phase-to-phase wildlife contact. | 176-00-025-G | Insulation | |
E/FTP-480-35kV Red | E/Fusing Tape 4.00in High Insulation Red | Self-fusing silicone wrap used to insulate complex utility equipment up to 50kV including terminations, connections, cables and more. | Fusing Tapes | ||
E/FTP-480-35kV Gray | E/Fusing Tape 4.00in High Insulation Gray | Self-fusing silicone wrap used to insulate complex utility equipment up to 50kV including terminations, connections, cables and more. | Fusing Tapes | ||
E/FTP-25080-35kV RED | E/Fusing Tape 2.50in High Insulation Red | Self-fusing silicone wrap used to insulate complex utility equipment up to 50kV including terminations, connections, cables and more. | Fusing Tapes | ||
E/FTP-25080-35kV GRAY | E/Fusing Tape 2.50in High Insulation Gray | Self-fusing silicone wrap used to insulate complex utility equipment up to 50kV including terminations, connections, cables and more. | Fusing Tapes | ||
E/FTP-400R | E/Fusing Tape 4.00in Red | Self-fusing silicone wrap used to insulate complex utility equipment including terminations, connections, cables and more. | Fusing Tapes | ||
E/FTP-400G | E/Fusing Tape 4.00in Gray | Self-fusing silicone wrap used to insulate complex utility equipment including terminations, connections, cables and more. | Fusing Tapes | ||
E/FTP-250R | E/Fusing Tape 2.50in Red | Self-fusing silicone wrap used to insulate complex utility equipment including terminations, connections, cables and more. | Fusing Tapes | ||
E/FTP-250G | E/Fusing Tape 2.50in Gray | Self-fusing silicone wrap used to insulate complex utility equipment including terminations, connections, cables and more. | Fusing Tapes | ||
E/FTP-100R | E/Fusing Tape 1.00in Red | Self-fusing silicone wrap used to insulate complex utility equipment including terminations, connections, cables and more. | Fusing Tapes | ||
E/FTP-112G | E/ Fusing Tape 112 | Self-fusing silicone wrap used to insulate complex utility equipment including terminations, connections, cables and more. | Fusing Tapes | ||
E/CAP-EMC-BOOT-G | E/ Capacitor Boot | Fits capacitors up 3.4in wide. | 111-00-01 | Covers | |
E/BC-M | E/ Bushing Cover Medium | Insulate a bushing with a height up to 10.86in (275.84mm) and a width of 6.7in (170.18mm). | 346-00-02 | Covers | |
E/BC-X-LGE | E/ Bushing Cover Extra Large | Insulate a bushing with a height up to 11.8in (299.72mm) and a width of 6.7in (170.18mm). | 346-00-01 | Covers | |
E/GSC-X-LONG | E/ Ground Stud Cover Extra Long | Protects ground stud connectors from animal contact. | 163-00-02 | Covers | |
E/GSC-LONG | E/ Ground Stud Cover Long | Protects ground stud connectors from animal contact. | 163-00-01 | Covers | |
E/GSC-SHORT | E/ Ground Stud Cover Short | Protects ground stud connectors from animal contact. | 204-00-01 | Covers | |
E/ACH-L-185 | Animal Control Strips | Prevents animals from climbing over substation fences and birds from roosting on cross arms. | 254-10-01 | Barriers | |
E/Hole Punch | E/ Hole Punch | Spring-loaded hole punch for modifying E/Covers and E/Silicone Sheets to eliminate gaps. | 301-00-00 | Accessories | |
E/Silicone Tie Wrap-27-G | E/ Silicone Tie Wraps 27in | Long lasting alternative to temporary plastic tie wraps or zip ties. Each bag contains 10 ties. | 161-00-03 | Accessories | |
E/Silicone Tie Wrap-13-G | E/ Silicone Tie Wraps 13in | Long lasting alternative to temporary plastic tie wraps or zip ties. Each bag contains 10 ties. | 161-00-01 | Accessories | |
E/Silicone Tie Wrap-9-G | E/ Silicone Tie Wraps 9in | Long lasting alternative to temporary plastic tie wraps or zip ties. Each bag contains 10 ties. | 161-00-02 | Accessories | |
E/Push Pins Single Wall, Red | Push Pins Red | Pins used to secure Midsun molded covers and silicone sheets. Included with covers. Sold separately in bags of 50. | 147-00-01R | Accessories | |
E/HSA-Anti Nest | E/ Anti-Nesting Hot Stick Attachment | Hot stick attachment for Anti-Nesting barriers enabling energized installation. | 322-00-01 | Accessories, Barriers | |
E/Anti-Nest-Bar 20-45 | E/ Anti-Nesting Barrier 20in | Angled barrier that blocks wildlife from utility equipment while preventing animals from roosting in the area. | 299-20-24 | Barriers | |
E/Anti-Nest-Bar 16-34 | E/ Anti-Nesting Barrier 16in | Angled barrier that blocks wildlife from utility equipment while preventing animals from roosting in the area. | 299-00-01 | Barriers | |
E/Getaway Guard | E/ Getaway Guard | Barrier assembly that includes a large disc and 10 slippery rotating collars that prevents climbing animals access via overhead power lines in open air substations. | 101-00-00 | Barriers | |
E/BB-2350 | E/ Bird Barrier 24in No Slots | EBPC-2350-525-187 | Barriers | ||
E/BAR SETS-12"-NO SLOTS | E/ Bird Barrier 12in No Slots | EBPC-1200-350-125-3A | Barriers | ||
E/BAR SETS-20"-SLOTS | E/ Bird Barrier 20in Slots | EBSC-2000-450-125-3A | Barriers | ||
E/BAR SETS-20"-NO SLOTS | E/ Bird Barrier 20in No Slots | EBPC-2000-450-125-3A | Barriers | ||
E/INSERT-FLEX-20/24-G | E/Flex-Barrier Insert Clip 20-24in | Insert for 20in and 24in E/Flex Barriers that enables fitting to smaller core insulators. | 138-20-24 | Accessories, Barriers | |
E/INSERT-FLEX-16-G | E/Flex-Barrier Insert Clip 16in | Insert for 16in E/Flex Barriers that enables fitting to smaller core insulators. | 138-16-16 | Accessories, Barriers | |
E/Flex Bar-R-24" | E/ Flex Barrier 24in Red | One piece disc-shaped barrier that blocks wildlife from contact with power equipment. | 138-24-01R | Barriers | |
E/Flex Bar-R-20" | E/ Flex Barrier 20in Red | One piece disc-shaped barrier that blocks wildlife from contact with power equipment. | 138-20-01R | Barriers | |
E/Flex Bar-R-16" | E/ Flex Barrier 16in Red | One piece disc-shaped barrier that blocks wildlife from contact with power equipment. | 138-16-01R | Barriers | |
E/Flex Bar-G-24" | E/ Flex Barrier 24in Gray | One piece disc-shaped barrier that blocks wildlife from contact with power equipment. | 138-24-01G | Barriers | |
E/Flex Bar-G-20" | E/ Flex Barrier 20in Gray | One piece disc-shaped barrier that blocks wildlife from contact with power equipment. | 138-20-01G | Barriers | |
E/Flex Bar-G-16 | E/ Flex Barrier 16in Gray | One piece disc-shaped barrier that blocks wildlife from contact with power equipment. | 138-16-01G | Barriers | |
E/FTP-100G | E/Fusing Tape 1.00in Gray | Self-fusing silicone wrap used to insulate complex utility equipment including terminations, connections, cables and more. | Fusing Tapes | ||
E/Push Pins Single Wall, Gray | Push Pins Gray | Pins used to secure Midsun molded covers and silicone sheets. Included with covers. Sold separately in bags of 50. | 147-00-01G | Accessories | |
E/PT-T-LA RECLR CVR | Pole Top Transformer Lightning Arrestor Recloser Cover | Designed to fit either pole top bushings or lightning arrestors with a pass-through lead. | 262-00-03 | Covers | |
E/Term-CV | Termination Cover | Silicone cover designed to cover underground termination bushings. | 164-20-01 | Covers | |
E/SRG-ARR-CVR | Surge Arrestor Cover | Designed to fit taller lightning arrestors with a pass-through lead or pole top bushings. | 268-00-02 | Covers | |
E/STC | Substation Termination Cover | Silicone cover designed to protect various sizes of termination substrates. Allows for a quick on/off application. | 284-00-01 | Covers | |

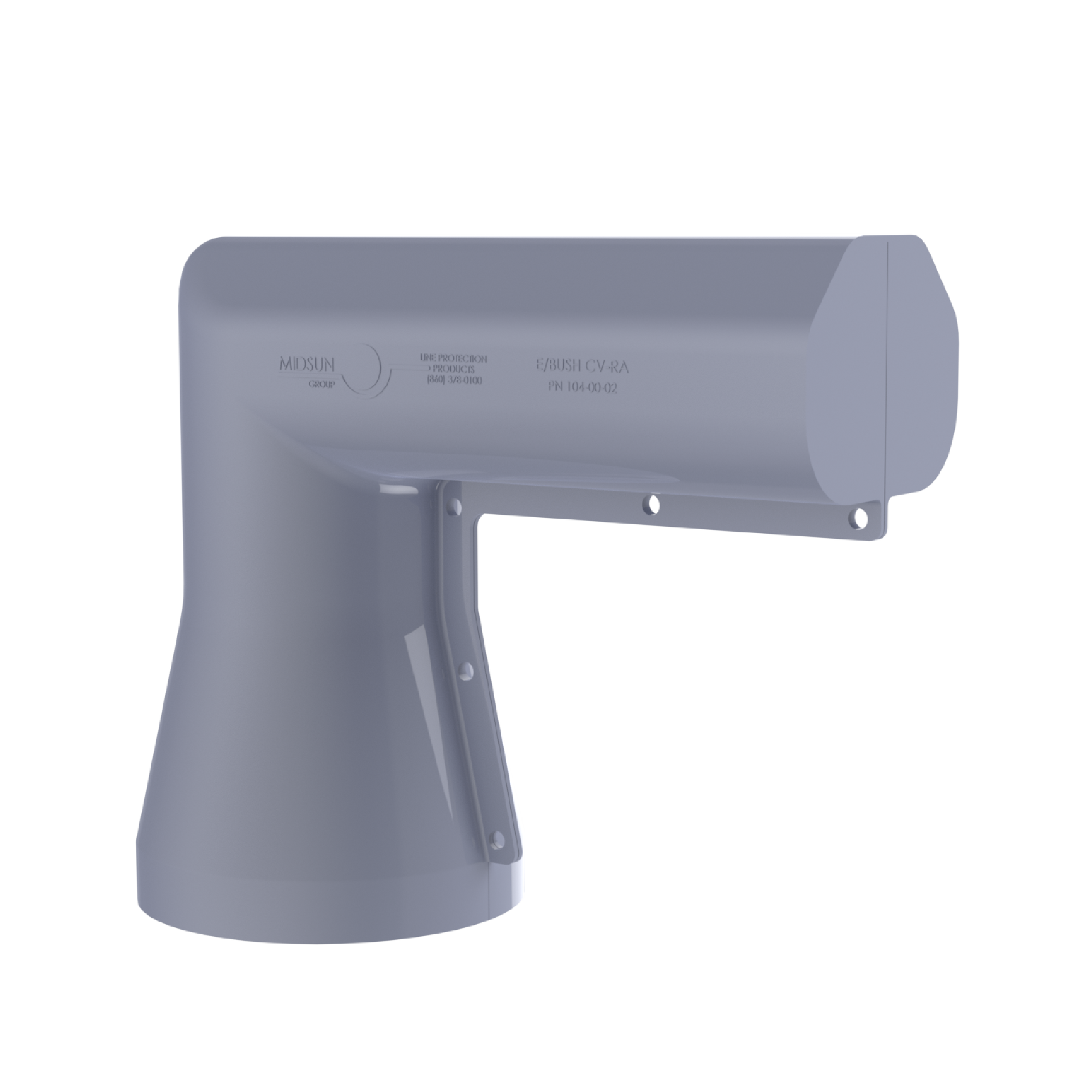

E/BC-RA | Right Angle Bushing Cover | Silicone cover designed to fit large bushings with double right angle lead connections. | 104-00-02 | Covers | |
E/SRVSC | Recloser Voltage Sensor Cover | T-shaped for use on recloser T-Sensors. | 103-00-01 | Covers | |
E/PT-LA-CAP | E/ Pole Top Lightning Arrestor Cap | Designed for pole top right angle lightning arrestor. | 184-00-01 | Covers | |
E/PT-LA RECLSR-CVR | Pole Top Lightning Arrestor Recloser Cover | Designed for pole top arrestors with a single lead at a right angle. It may also be used for pole top right angle bushings. | 262-00-02 | Covers | |
E/PIN INS CV-MED | Pin Insulator Cover Medium | Fits standard cross-arm pin insulators. | 126-00-03 | Covers | |
E/PIN INS CV-LG | Pin Insulator Cover Large | Fits large cross-arm pin insulators. | 126-00-01 | Covers | |
E/PIN INS CV-SM | Pin Insulator Cover Small | Fits standard cross-arm pin insulators. | 126-00-02 | Covers | |
E/LAC | Lightning Arrestor Cover | Fits multiple substation lightning arrestors. Adapts to different bus and lead connections. Easy on/off application. | 137-10-01 | Covers | |
E/BC – LG – X – W | Large Bushing Width Extension | Adds 6.80in (172.72mm) to the width of the E/Bushing Cover Large. | 199-00-01 | Covers | |
E/BC-LG-X-WRA/CR5 | Large Bushing Cover Right Angle Port Cone | Cone that attaches to E/Bushing Cover Large Right Angle Extension. | 197-00-01 | Covers | |
E/BC-LG-X-WT | Large Bushing Cover Width Top Extension | Adds 5in (127mm) to the top width of the E/Bushing Cover Large. | 202-00-01 | Covers | |
E/BC-LG-X-H/F | Large Bushing Cover Height Filler Extension | Adds height to E/Bushing Cover Large Height Extension. | 203-00-01 | Covers | |
E/BC-LG-X-H | Bushing Cover Height Extension | This extension gives an additional 6.10in (154.94mm) to the height of E/Bushing Cover Large. | 201-00-01 | Covers | |
E/BC-LG-X-WRA-CAP | Bushing Cover Right Angle Extension | Adds an additional 6.8in (172.72mm) to the width of the E/Bushing Cover Large and also features a right angle exit point. | 205-00-01 | Covers | |

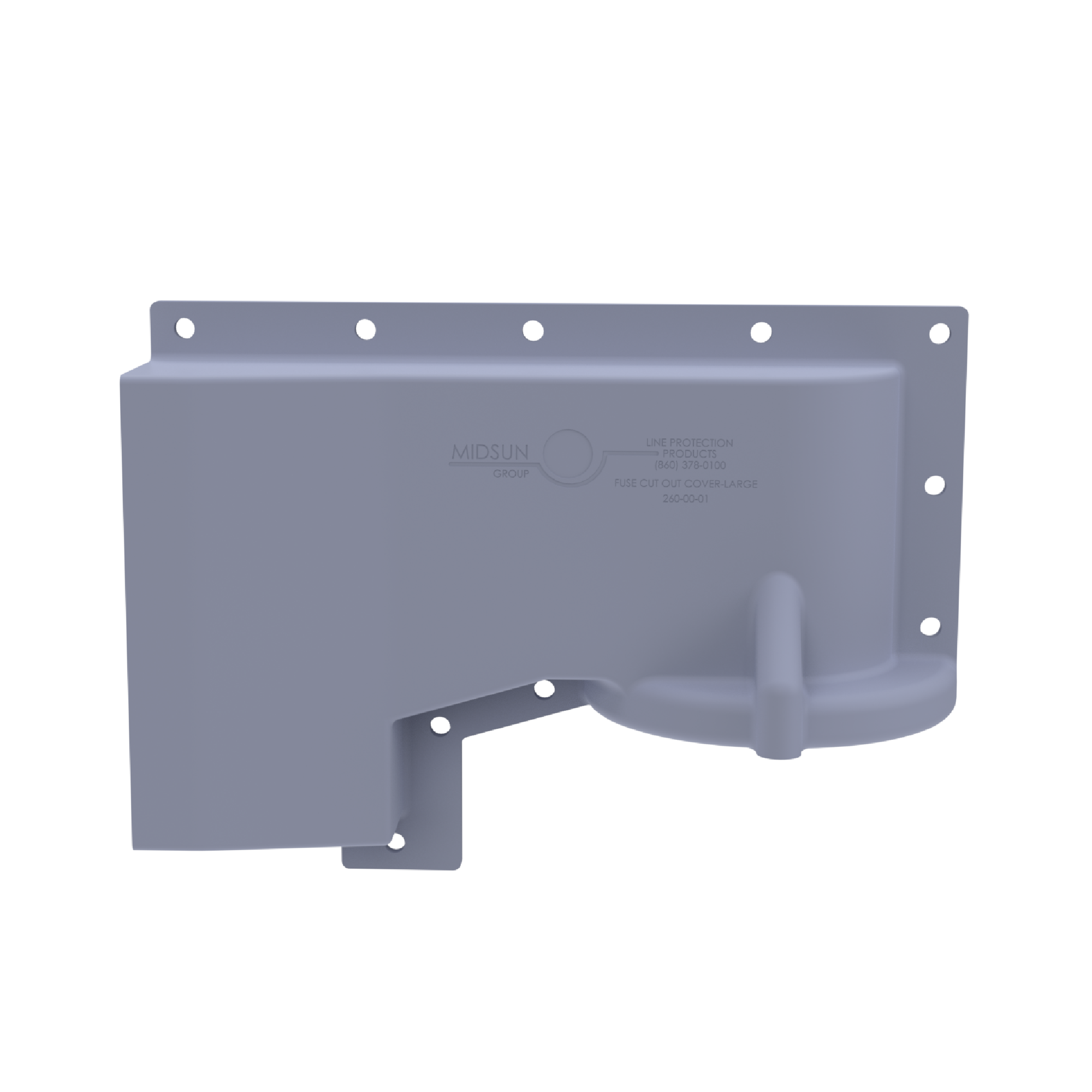

E/FUSE CUT OUT-LG ASSY | Fuse Cutout Cover Large | For use on larger fuse cut-out switches. The design allows for easy opening and closing of the fuse. | 260-10-01 | Covers | |
E/FUSE CUT OUT CVR | Fuse Cutout Cover | For use on fuse cut-out switches. The design allows for easy opening and closing of the fuse. | 132-00-01 | Covers | |
E/L-SENSOR CV | L - Sensor Cover | Fits right-angle recloser sensors. | 247-00-01 | Covers | |
E/FPS-CVR | FPS Current Sensor Cover | Insulates the bottom sensor of a *Fisher Pierce current sensor. | 222-00-01 | Covers | |
E/PIN INS CV-TALL | E/ Pin Insulator Cover Tall | Fits large cross-arm pin insulators. | 126-00-04 | Covers | |
E/BC-DBL-LEAD | E/ Double Lead Cover | Accommodates bushings with multiple lead connections. | 155-50-01 | Covers | |
E/PT-DL-LA RECLSR CVR | Double Lead Lightning Arrestor Recloser Cover | Designed for pole top arrestors with double leads at a right angle. | 262-00-01 | Covers | |
E/CCS-CVR | Capacitor Current Sensor Cover | Insulates the bottom sensor of a Fisher Pierce current sensor. | 266-00-02 | Covers | |
E/PT-CAPACITOR-CV | Capacitor Cover | Designed to protect energized portion of capacitor bushings. | 227-00-01 | Covers | |
E/BC-Small | Bushing Cover Small | Fits small station service transformer bushings, PT’s and CT’s, and pole-top transformer bushings with a height of 6.40in (162.56mm) and with a bottom opening of 3in (76.20mm). | 210-00-01 | Covers | |
E/BC-SIDE | Bushing Cover Side | Designed for recloser bushings. The perforated bottom allows it to fit various sized bushings up to 11.50in (292.1mm) high with an opening of 5.90in (149.86mm) wide. | 180-00-02 | Covers | |
E/BC-LG-X-WRA-CAP ONLY | Bushing Cover Right Angle Extension Cap | Cap for E/Bushing Cover Right Angle Extension. | 195-00-01 | Covers | |
E/BC-Multiport | Multiport Bushing Cover | Accommodates bushings with multiple lead connections. | 185-00-01 | Covers | |
E/BC-Half | Bushing Cover Half | Fits small station service transformer bushings, PT’s and CT’s, and pole-top transformer bushings, from 6.90in (175.26 mm) high with an opening of 5.20 in (132.08mm) | 130-00-01 | Covers | |
E/BC-Full | Bushing Cover Full | Fits medium-sized transformer breaker, regulator bushings, and arrestors. Will fit bushing diameters up to 5 in., 127.0 mm. | 129-00-01 | Covers | |
E/C-BAR CV | Bushing Cover C-Bar | Fits large bushings with double right angle lead connections. | 287-00-01 | Covers | |
E/BSC-XL | Bus Support Cover XL | Fits round, flat or angle bus ranging from 4.50 in (114.3 mm) to 5.50in (139.7 mm) | 113-00-00 | Covers | |
E/BSC | Bus Support Cover | Fits round, flat or angle bus ranging from 0.50in (12.7 mm) to 3in (76.2 mm). | 127-00-01 | Covers | |
E/BSC-350 | E/ Bus Support 3.50 | Fits round, flat, or angle bus insulators | 127-20-01 | Covers | |

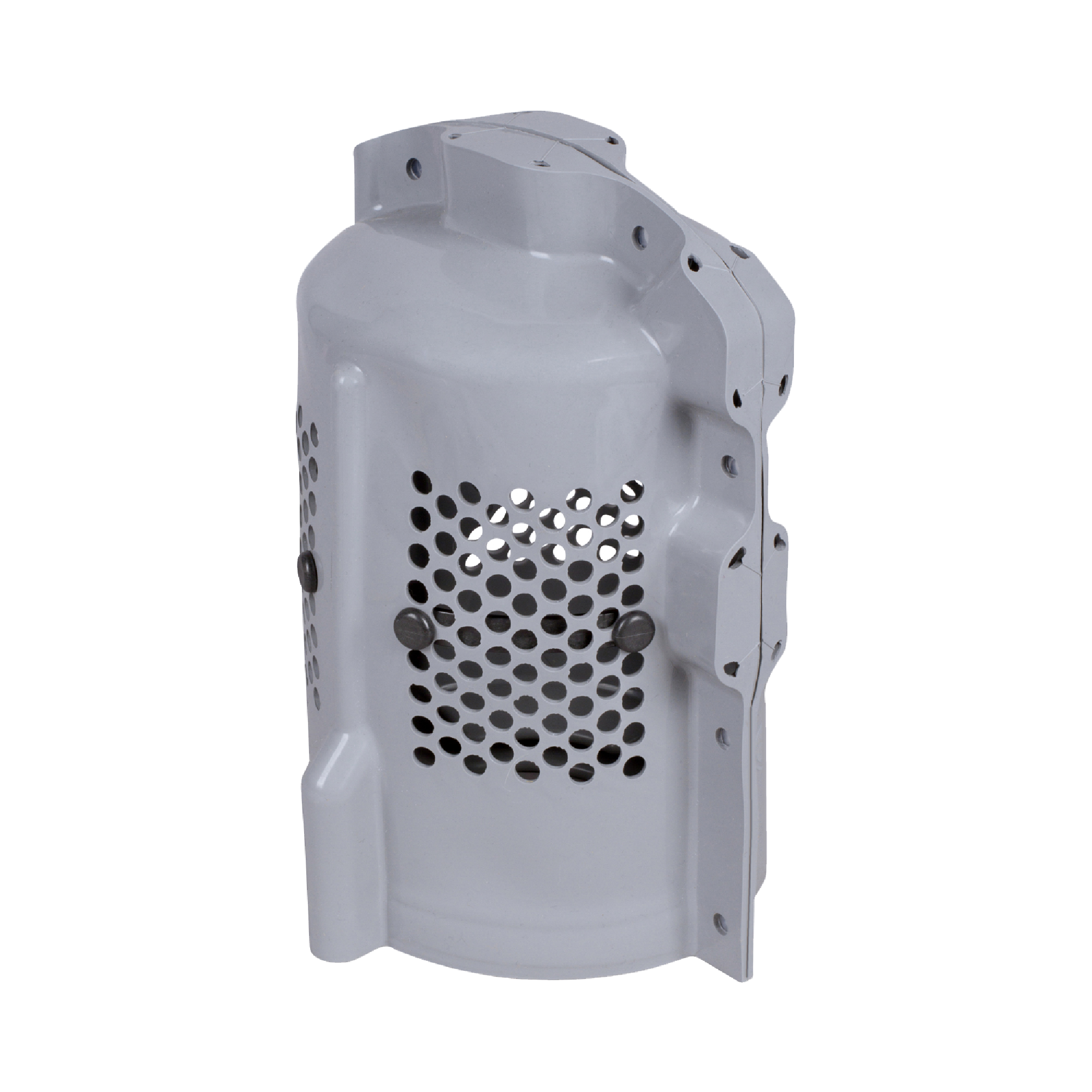

E/BIRDCAGE-MED | Birdcage Medium | Semi-exposed walls allows for easy IR inspection and visibility while covering large bushings with a double or single lead connection. | 302-00-01 | Covers | |
E/BIRDCAGE-LGE | Birdcage Large | Semi-exposed walls allows for easy IR inspection and visibility while covering large bushings with a double or single lead connection. | 302-00-02 | Covers | |
E/BC-90RA | 90° Right Angle Bushing Cover | Fits larger single or double lead right angle bushing connections. | 236-00-01 | Covers | |
E/BC-LG | Bushing Cover Large | Insulates bushings with a skirt diameter up to 8in (203.2mm). Use E/Bushing Cover Large Extensions to add width and height to this cover. | 128-00-01 | Covers |
