E/ Kits
Complete silicone kits for reliable, application-specific wildlife protection in a easy to order system
Midsun silicone rubber kits transform wildlife protection into a simple, repeatable process. Each kit is designed to provide a seamless, integrated fit to your utility equipment. By providing a pre-configured solution for assets, these kits streamline the installation process and ensure consistent, long-term protection for your most critical infrastructure.
- Consolidates all necessary components into one part number for effortless ordering.
- Includes all necessary accessories to complete the job.
- Naturally resistant to UV exposure and will not fade or break down in direct sunlight.
- Flexible and hydrophobic.
- Can be modified to eliminate gaps.
Breaker Bushing Kit
Part Number: E/LVBRK-25H-KIT
| Part # | Product Name | Drawing # | Center Height | QTY |
|---|---|---|---|---|
| E/BC-LG | E/ Bushing Cover Large | 128-00-01 | 14.69 in (373.12 mm) | 6 ea |
| E/BC-LG-X-W | E/ Large Bushing Width Extension | 199-00-01 | 14.69 in (373.12 mm) | 2 ea |
| E/BC-LG-X-WRA-CAP ONLY | E/ Bushing Cover Right Angle Extension Cap | 195-00-01 | 0.90 in (22.86 mm) | 4 ea |
| E/FTP-250G | E/Fusing Tape 2.50in Gray | N/A | - | 1 ea |

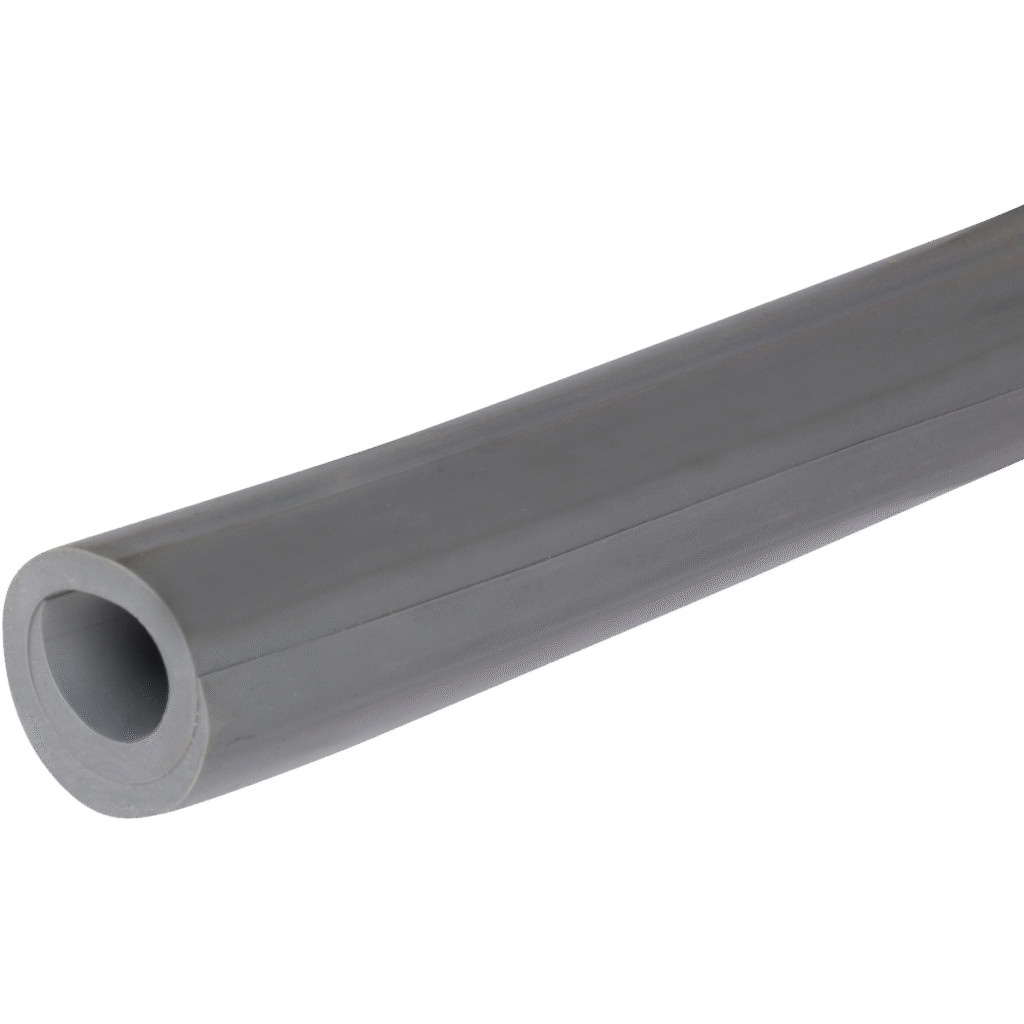

| E/INS-125-G | E/Insulation 1.25in | 176-00-125-G | - | 25 ft |
| E/Push Pins Single Wall, Gray | E/Push Pins Gray | 147-00-01G | - | 1 bag |
Bank Breaker Kit
Part Number: E/BANK BREAKER KIT
| Part # | Product Name | Drawing # | Center Height | QTY |
|---|---|---|---|---|
| E/BC-LG | E/ Bushing Cover Large | 128-00-01 | 14.69 in (373.12 mm) | 6 ea |
| E/BC-LG-X-WT | E/ Large Bushing Cover Width Top Extension | 202-00-01 | 10.25 in (260.35 mm) | 6 ea |
| E/Push Pins Single Wall, Gray | E/Push Pins Gray | 147-00-01G | - | 1 bag |
Large Bushing Height & Width Extension kit
Part Number: E/BCL-WHEXT-KIT
| Part # | Product Name | Drawing # | Center Height | QTY |
|---|---|---|---|---|
| E/BC-LG | E/ Bushing Cover Large | 128-00-01 | 14.69 in (373.12 mm) | 6 ea |
| E/BC-LG-X-W | E/ Bushing Cover Large Width Extension | 199-00-01 | 14.69 in (373.12 mm) | 6 ea |

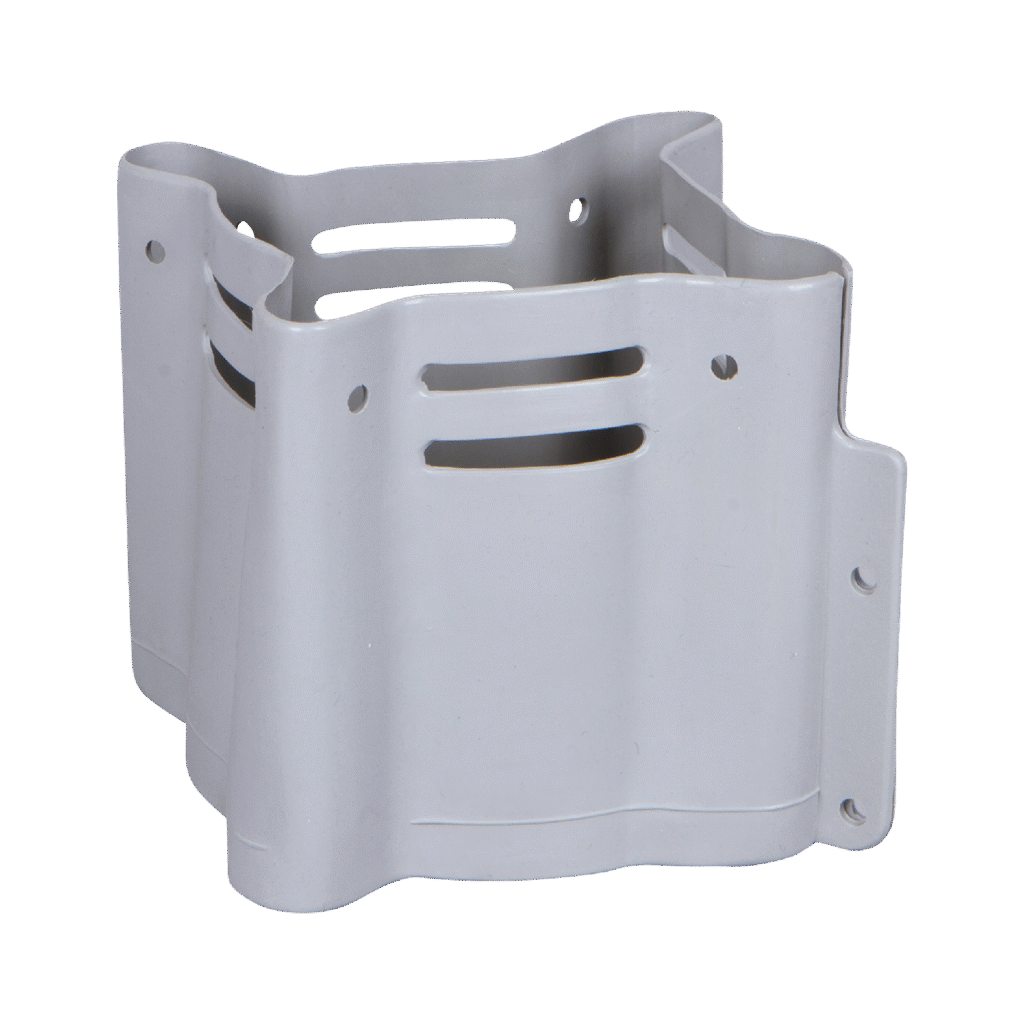

| E/BC-LG-X-H | E/ Bushing Cover Height Extension | 201-00-01 | 6.10 in (154.94 mm) | 6 ea |
| E/BC-LG-X-H/F | E/ Large Bushing Cover Height Filler Extension | 203-00-01 | 6.10 in (154.94 mm) | 6 ea |
| E/Push Pins Single Wall, Gray | E/Push Pins Gray | 147-00-01G | - | 1 bag |
Let Us Develop Your Wildlife Strategy
Whether your equipment is already under siege or you are fortifying a new station, you need a plan for wildlife outages.
Reach out to us and register your company for a personalized product orientation or webinar on Midsun E/Products and services.
