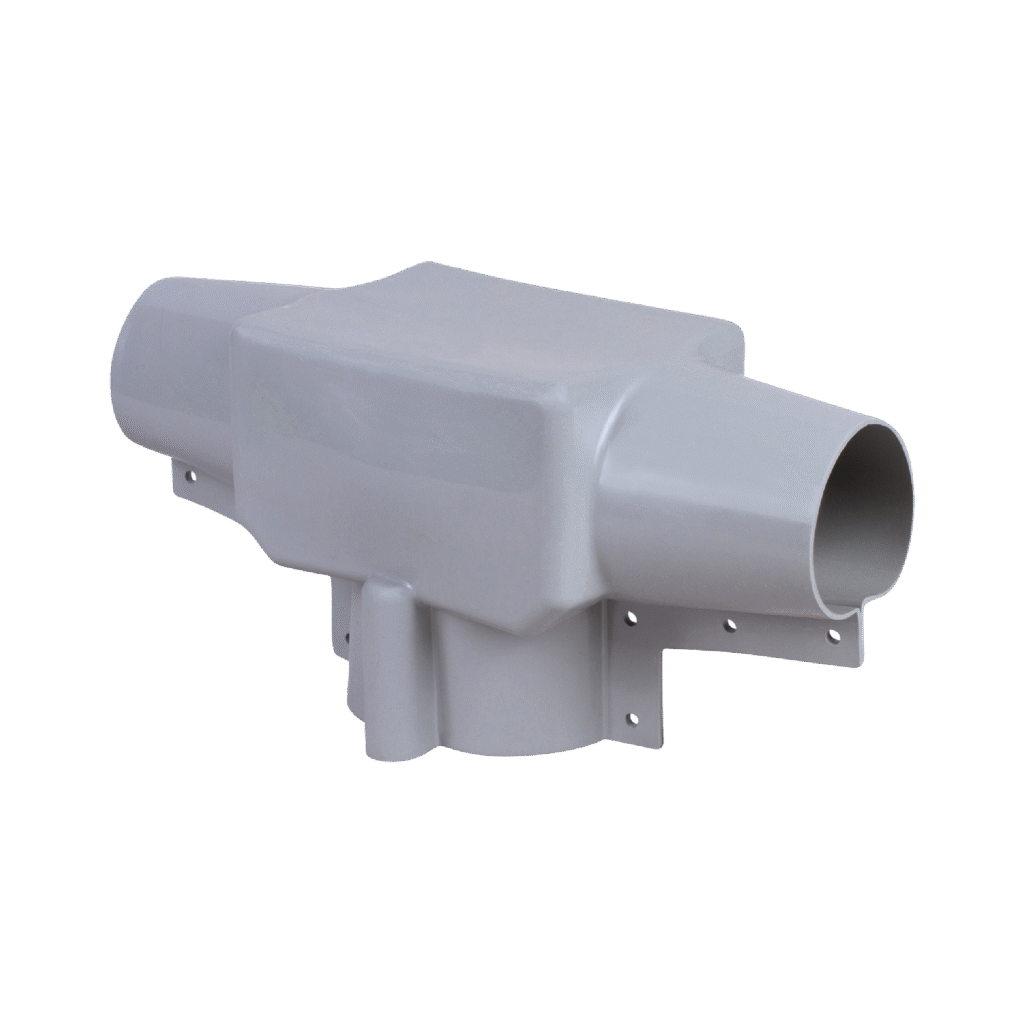

E/ Bus Support 3.50
Wildlife Outage Protection
Meets IEEE 1656 Standard
RUS Approved
- Part #: E/BSC-350
- Drawing #: 127-20-01
- Push Pins Included: 8
- Material Type: Silicone Rubber
- Phase-to-Ground Rating: 25kV
Fits round, flat, or angle bus insulators
ranging from 3in (76.2 mm) to 4.50in (114.3 mm).
Features
• Prevents phase-to-ground or phase-to-phase contact.
• Extremely durable. Will not chalk, brittle, crack or craze.
• Naturally resistant to UV exposure and will not fade or breakdown in direct sunlight.
• Hydrophobic surface. Self-cleaning during rainstorms to reduce contamination.
• Non-tracking and arc resistant. Will not melt or propagate flame when exposed to fire.
• Flexible and easy to install. Can be modified to eliminate gaps.
