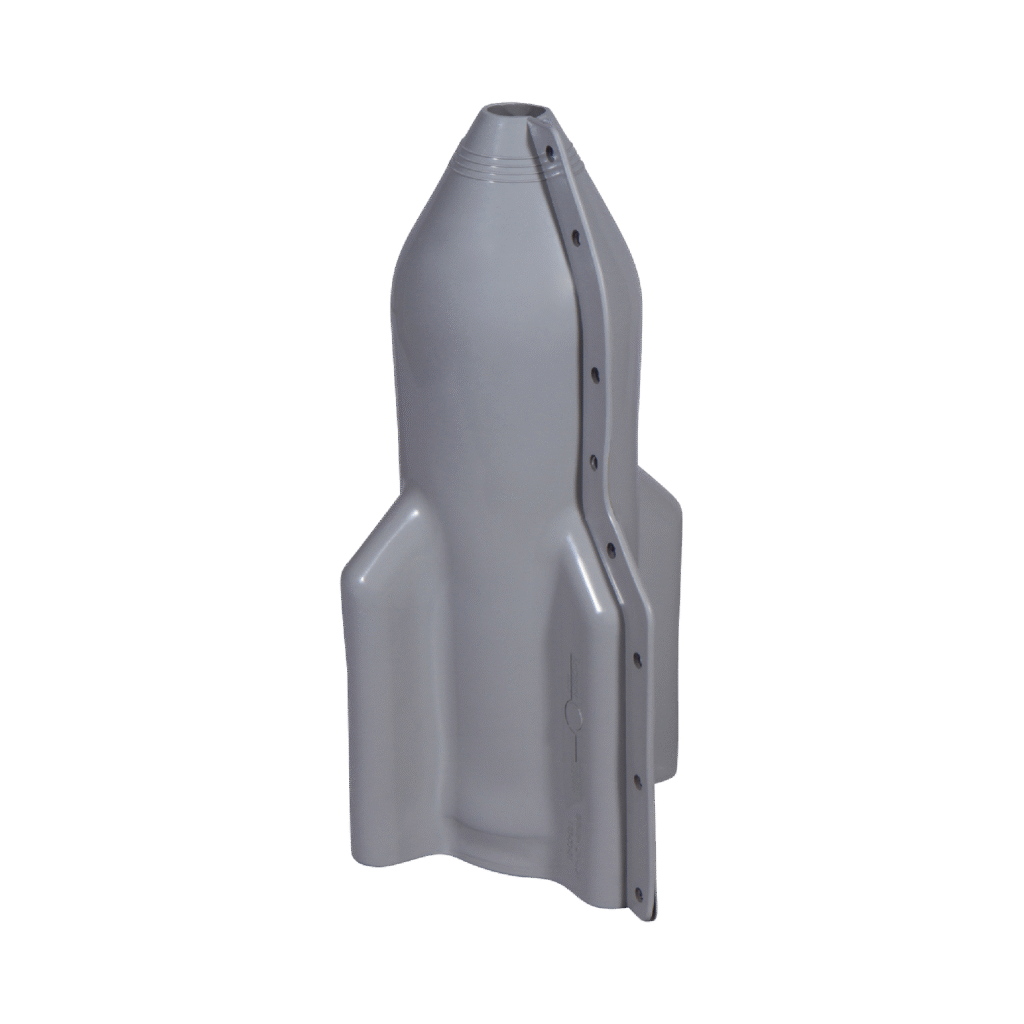

Bushing Cover Large
Wildlife Outage Protection
Meets IEEE 1656 Standard
RUS Approved
- Part #: E/BC-LG
- Drawing #: 128-00-01
- Push Pins Included: 8
- Material Type: Silicone Rubber
- Phase-to-Ground Rating: 25kV
Insulates bushings with a skirt diameter up to 8in (203.2mm). Use E/Bushing Cover Large Extensions to add width and height to this cover.
Features
• Extremely durable, will not chalk, brittle, crack or craze.
• Prevents phase-to-ground or phase-to-phase contact.
• Naturally resistant to UV exposure and will not fade or breakdown in direct sunlight.
• Flexible and hydrophobic.
• Can be modified to eliminate gaps.
• Compatible with E/Bushing Cover Large Extensions.
Application
E/Bushing Cover Large fits an array of transformer breakers, regulators, CT’s and pole top transformer bushings.
